Technical Features

• Series

  PI



• Size

  REGULAR

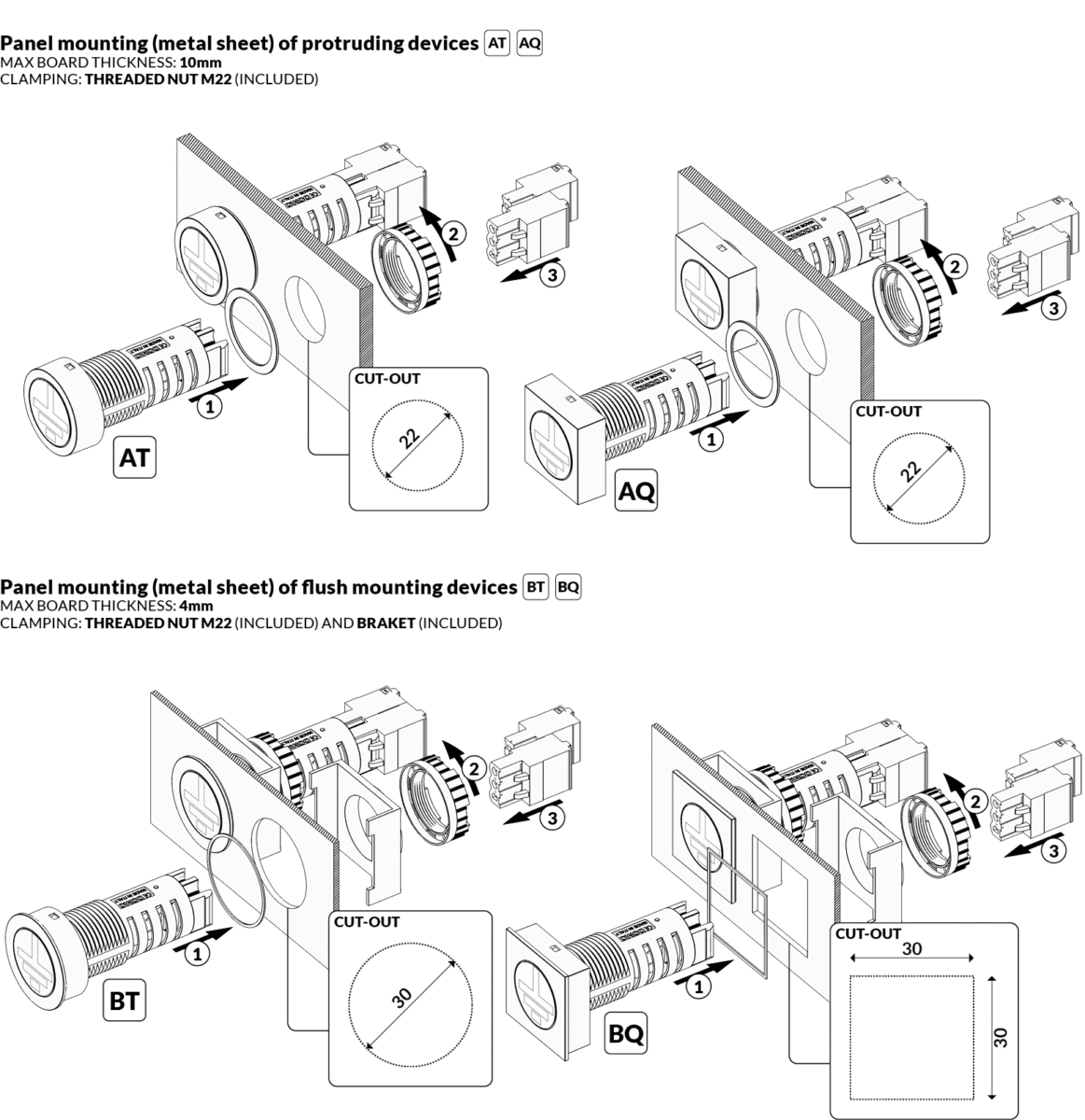

  Cut-out: 22mm
  Head: 30mm

• Head type

  •
    Protruding head
  •
    Flush mounting head

• Head shape

  •
    Round head, round display
  •
    Square head, round display

• Symbols and colors

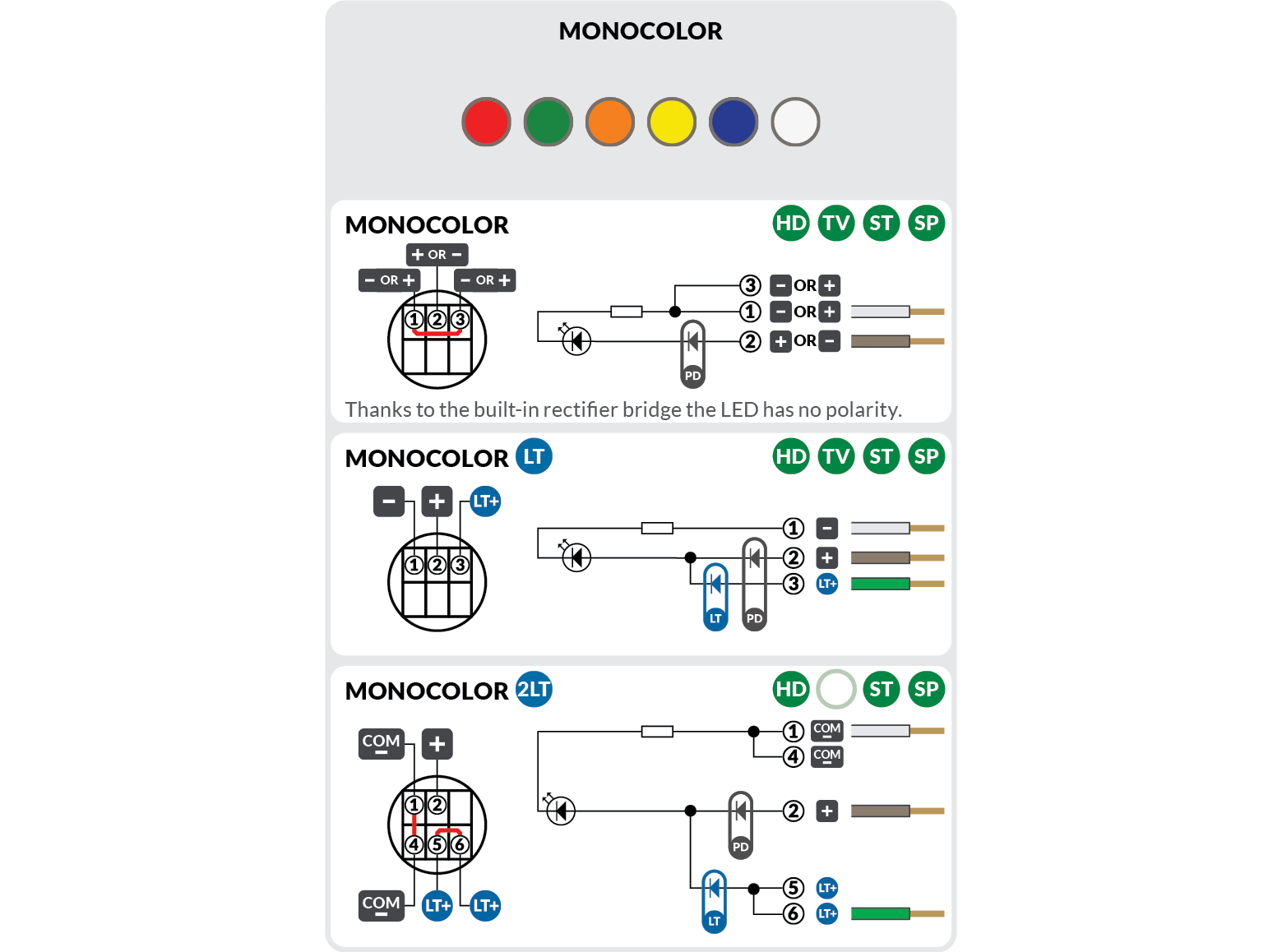

  MONOCOLOR - Ground Symbol

  Ground symbol, Colored lens, Colored LED

  •
    Ground symbol, Red Lens, Red LED
  •
    Ground symbol, Green Lens, Green LED
  •
    Ground symbol, Yellow Lens, Yellow LED
  •
    Ground symbol, Amber Lens, Amber LED
  •
    Ground symbol, Blue Lens, Blue LED
  •
    Ground symbol, White Lens, White LED

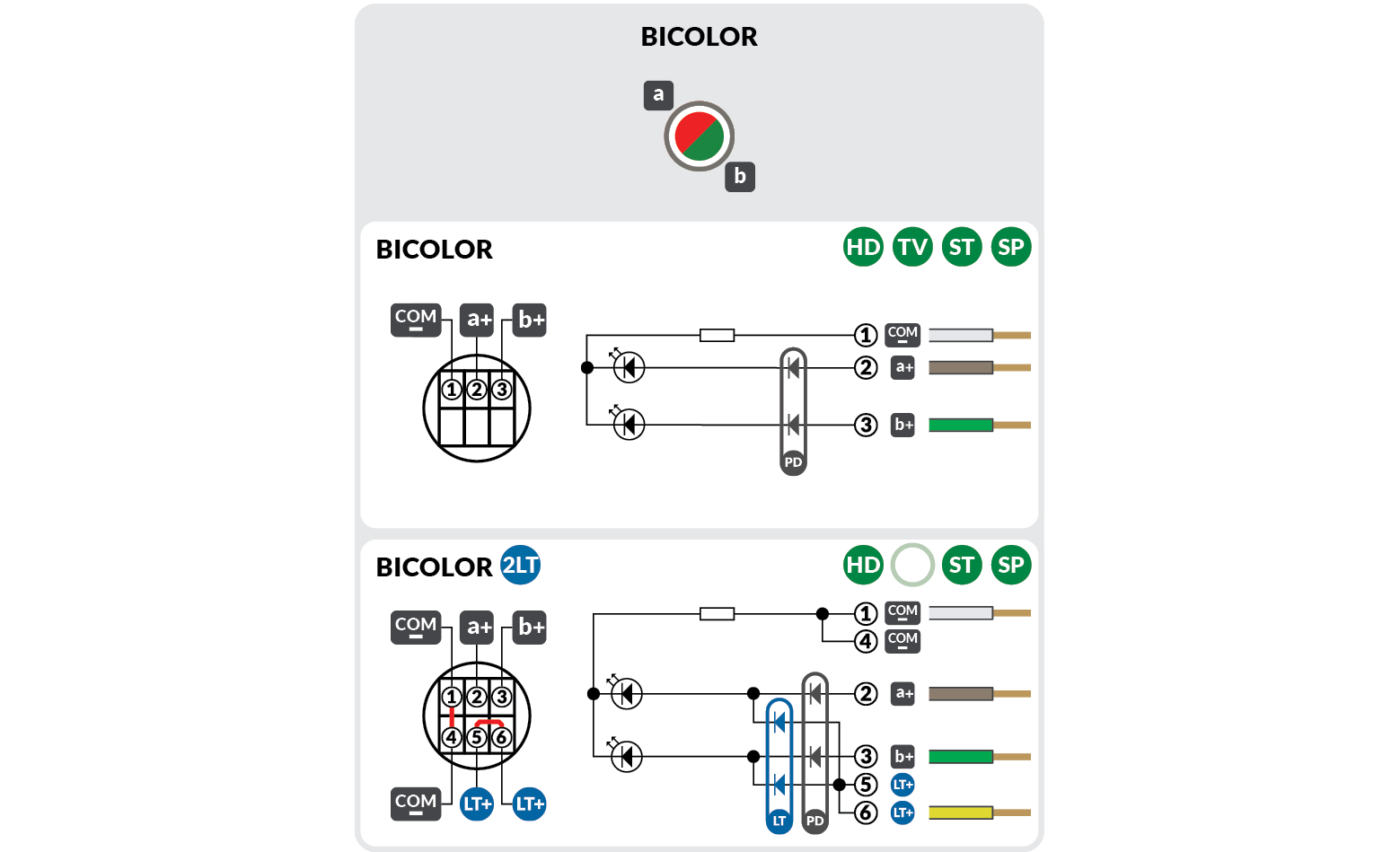

  BICOLOR - Ground Symbol

  Ground symbol, White Lens, Bicolor LED

  •
    Ground symbol, White Lens, Red/Green LED ¹

  MONOCOLOR - Disconnector Symbol

  Disconnector symbol, Colored Lens, Colored LED

  •
    Disconnector symbol, Red Lens, Red LED
  •
    Disconnector symbol, Green Lens, Green LED
  •
    Disconnector symbol, Yellow Lens, Yellow LED
  •
    Disconnector symbol, Amber Lens, Amber LED
  •
    Disconnector symbol, Blue Lens, Blue LED
  •
    Disconnector symbol, White Lens, White LED

  BICOLOR - Disconnector Symbol

  Disconnector symbol, White Lens, Bicolor LED

  •
    Disconnector symbol, White Lens, Red/Green LED ²

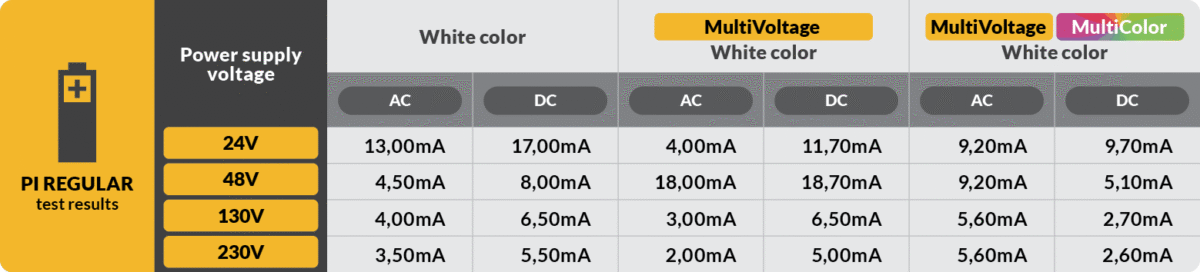

• Power supply voltage

  •
    24V AC/DC
  •
    48V AC/DC
  •
    130V AC/DC
  •
    230V AC/DC

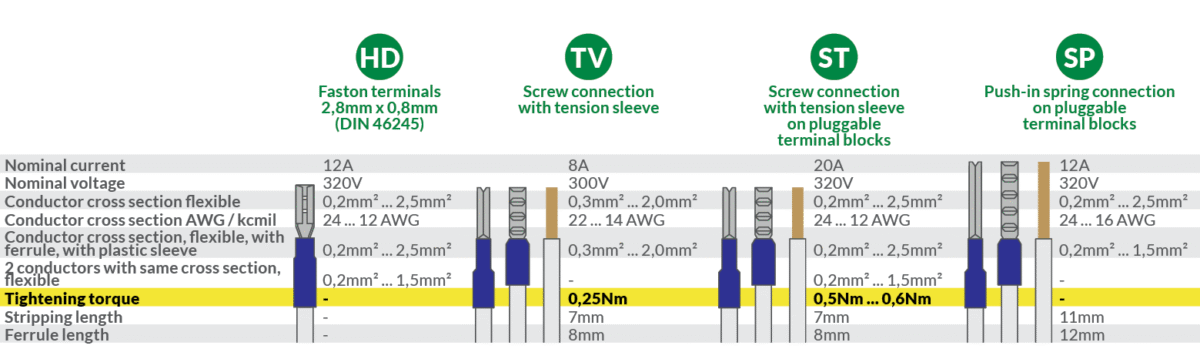

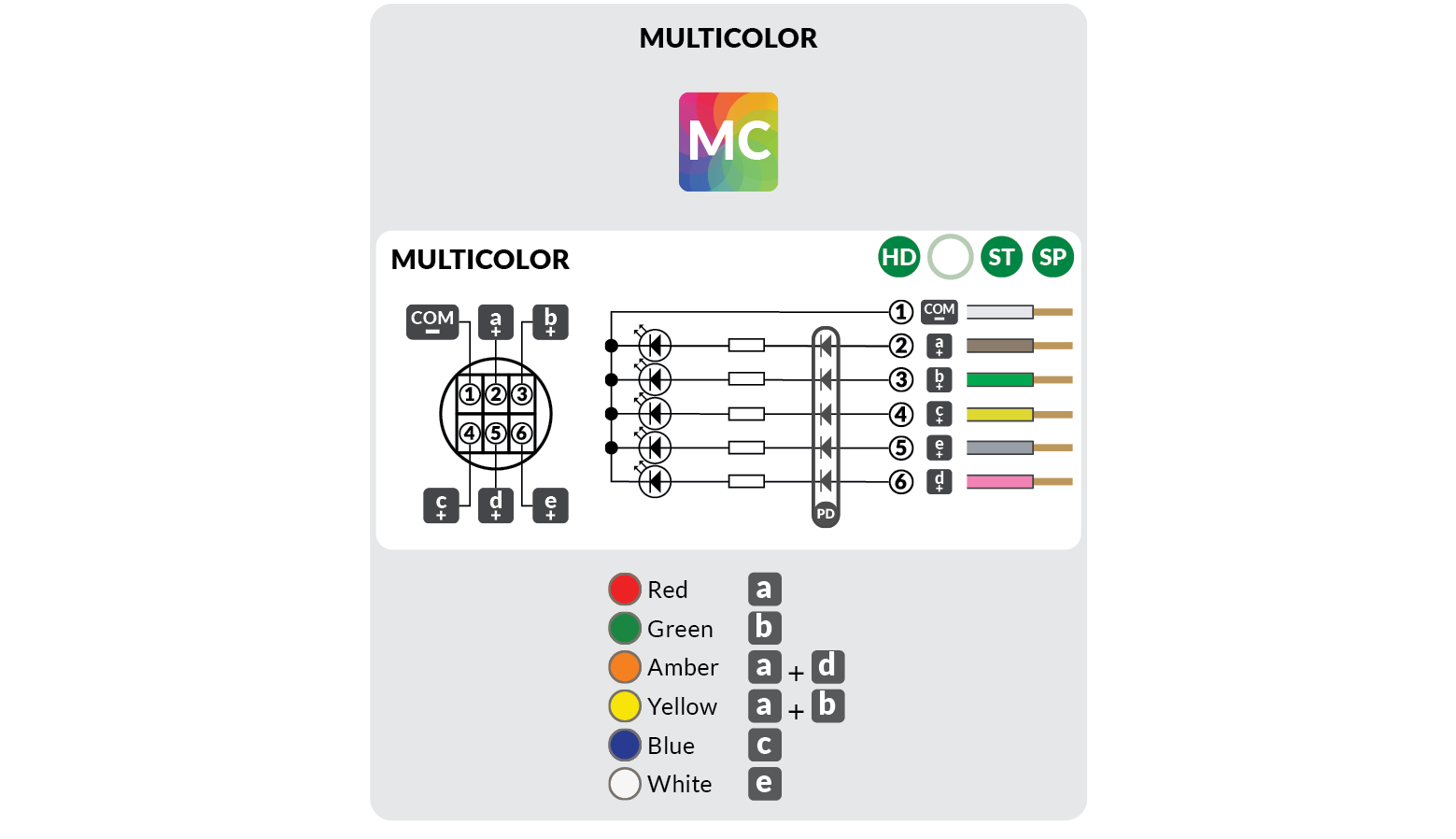

• Connection type

  •
    Faston terminals
  •
    Screw connection with tension sleeve
  •
    Screw connection with tension sleeve on pluggable terminal blocks
  •
    Push-in spring connection on pluggable terminal blocks

• Extra features

  •
    Built-in lamp test facility ³
  •
    Built-in double lamp test facility ⁴
  •
    Tropicalization
  •
    Flying leads

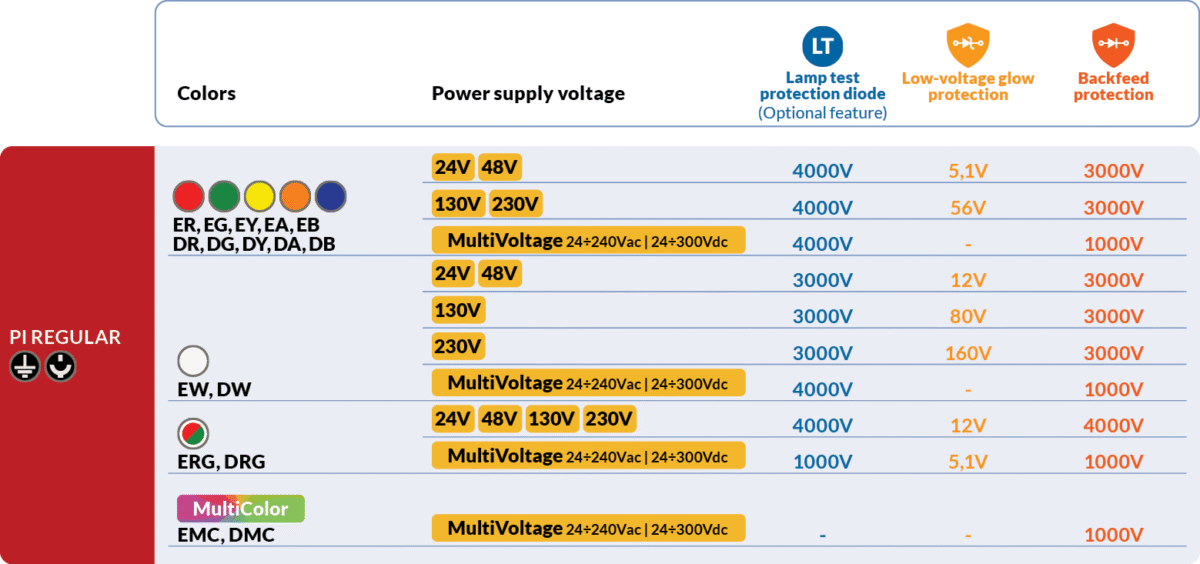

• Specific features

  •

    Smart PCB

    To operate both in alternating (Vac) and direct current (Vdc).

  •

    Backfeed Protection

    Built-in protection diodes protect the circuit from reverse voltage and current.

  •

    Low Voltage Glow Protection

    A Zener diode properly calibrates the minimum voltage required to switch on the LED Indicator.

• Degree of protection

  •
    IP54

• Service life

  •
    >100.000h at 25°C

• Ambient air temperature

  •

    -40°C
    +70°C

    For storage
    -40... +70°C

  •

    -20°C
    +70°C

    For operation
    -20... +70°C

• Materials

  •
    Polycarbonate (PC)
  •
    PMMA

• PCB

  •
    4 layers PCB

• Bulb base

  • Integral LED

• Device presentation

  • Monolithic product

• Vibration resistance

  • 5gn (f = 2...500 Hz)

    conforming to IEC 60068-2-6

• Electromagnetic compatibility

  • Disturbing field emission class B

    conforming to EN 55011

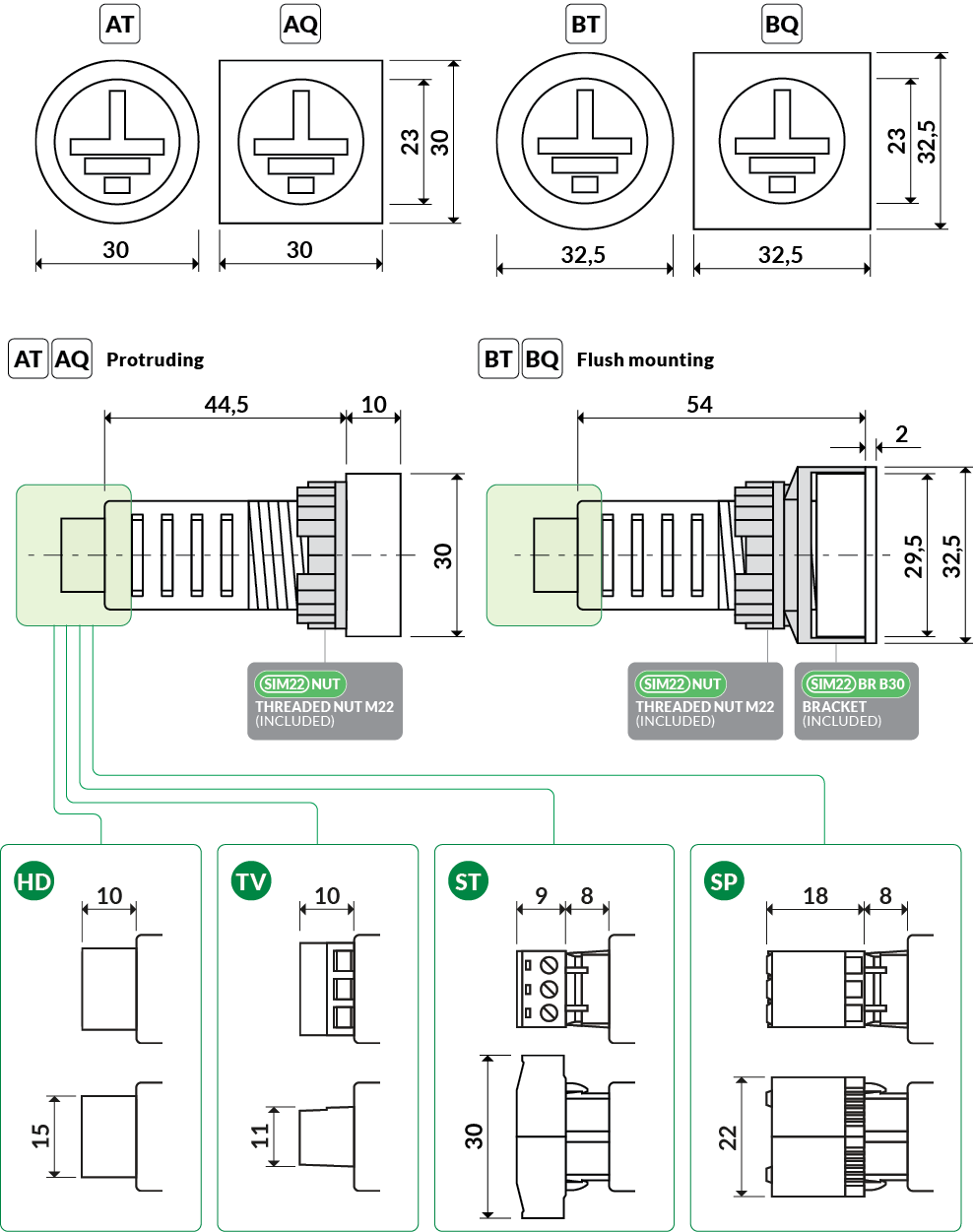

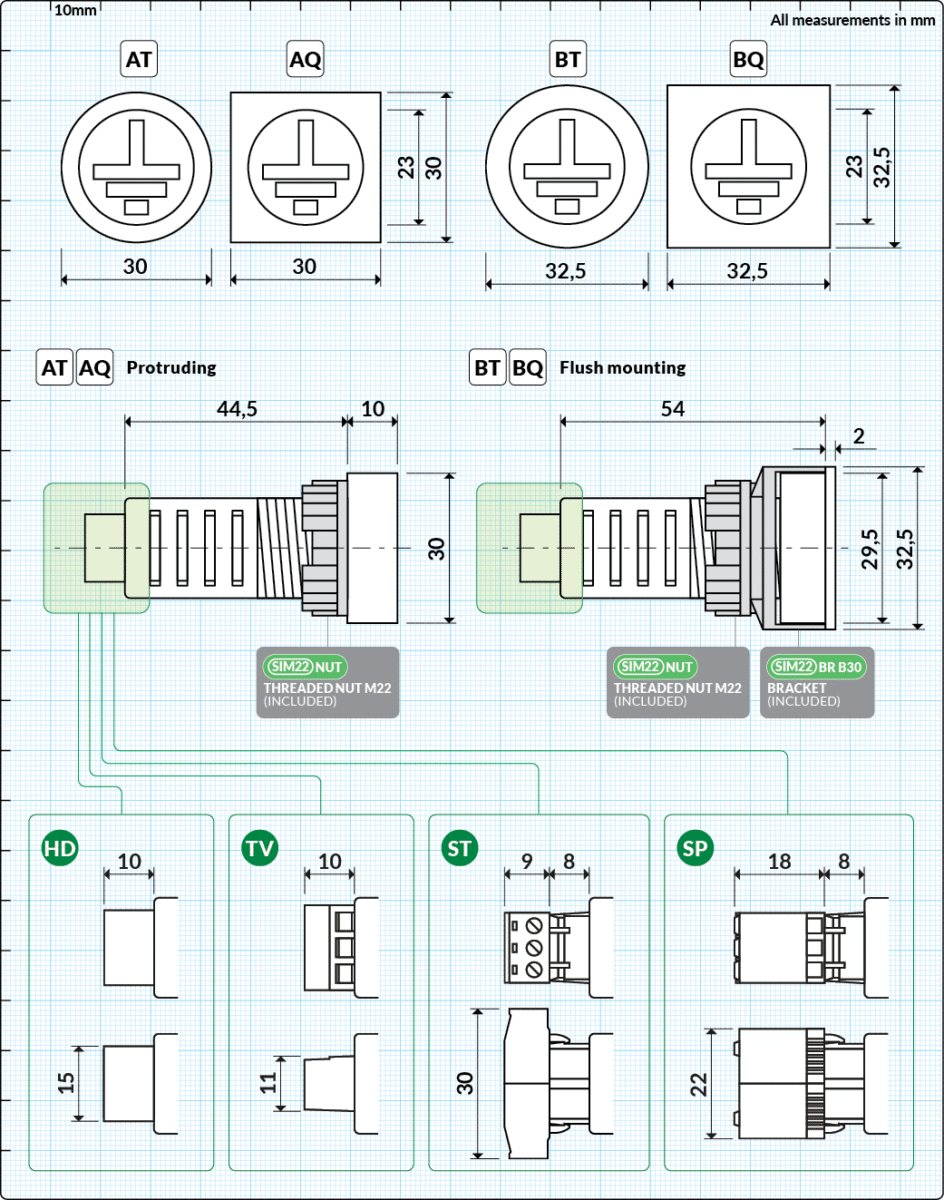

• Dimensions



• • REACh free of SVHC

  • Mercury free

  • Toxic heavy metal free

• Compliance

  Directive 2006/95/EC Low Voltage
  Directive 2004/108/EC Electromagnetic Compatibility
  Directive 2011/65/EC RhOS
  Directive 2006/42/EC Machinery

  Conformity to standards

  EN 60947.5.1 / EN 60073 / EN 60529 / EN 60068-2-6 / EN 60204.1 / EN ISO 7731 / EN 981 / IEC 536

  Warranty

  Warranty period is eighteen (18) months and starts from the goods delivery date.

  Customs Code

  8531 807000

• • ¹is not compatible with
  • ²is not compatible with
  • ³is not compatible with
  • ⁴is not compatible with
