Technical Features

• Series

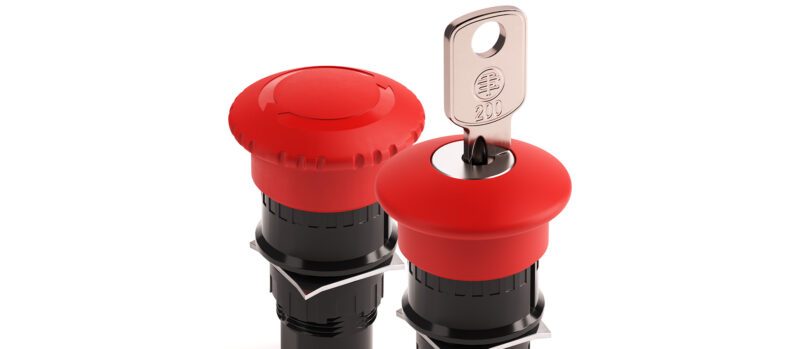

  SH16 EPB



• Head size

  •
    Ø30mm

• Operation

  •
    Twist to release
  •
    Key to release

• Ambient air temperature

  •

    -40°C
    +70°C

    For storage
    -40... +70°C

  •

    -25°C
    +70°C

    For operation
    -25... +70°C

• Humidity

  •

    35... 85%RH

• Materials

  •
    Polycarbonate (PC)

• Vibration resistance

  • +/- 3 mm (f= 2...500 Hz)

    conforming to IEC 60068-2-6

  • 5gn (f = 2...500 Hz)

    conforming to IEC 60068-2-6

• • REACh free of SVHC

  • Mercury free

  • Toxic heavy metal free

• Compliance

  Directive 2006/95/EC Low Voltage
  Directive 2004/108/EC Electromagnetic Compatibility
  Directive 2011/65/EC RhOS
  Directive 2006/42/EC Machinery

  Conformity to standards

  EN 60947.5.1 / EN 60073 / EN 60529 / EN 60068-2-6 / EN 60204.1 / EN ISO 7731 / EN 981 / IEC 536

  Warranty

  Warranty period is eighteen (18) months and starts from the goods delivery date.

  Customs Code

  8536 5011
