Technical Features

• Series

  TWR



• Size

  TALL

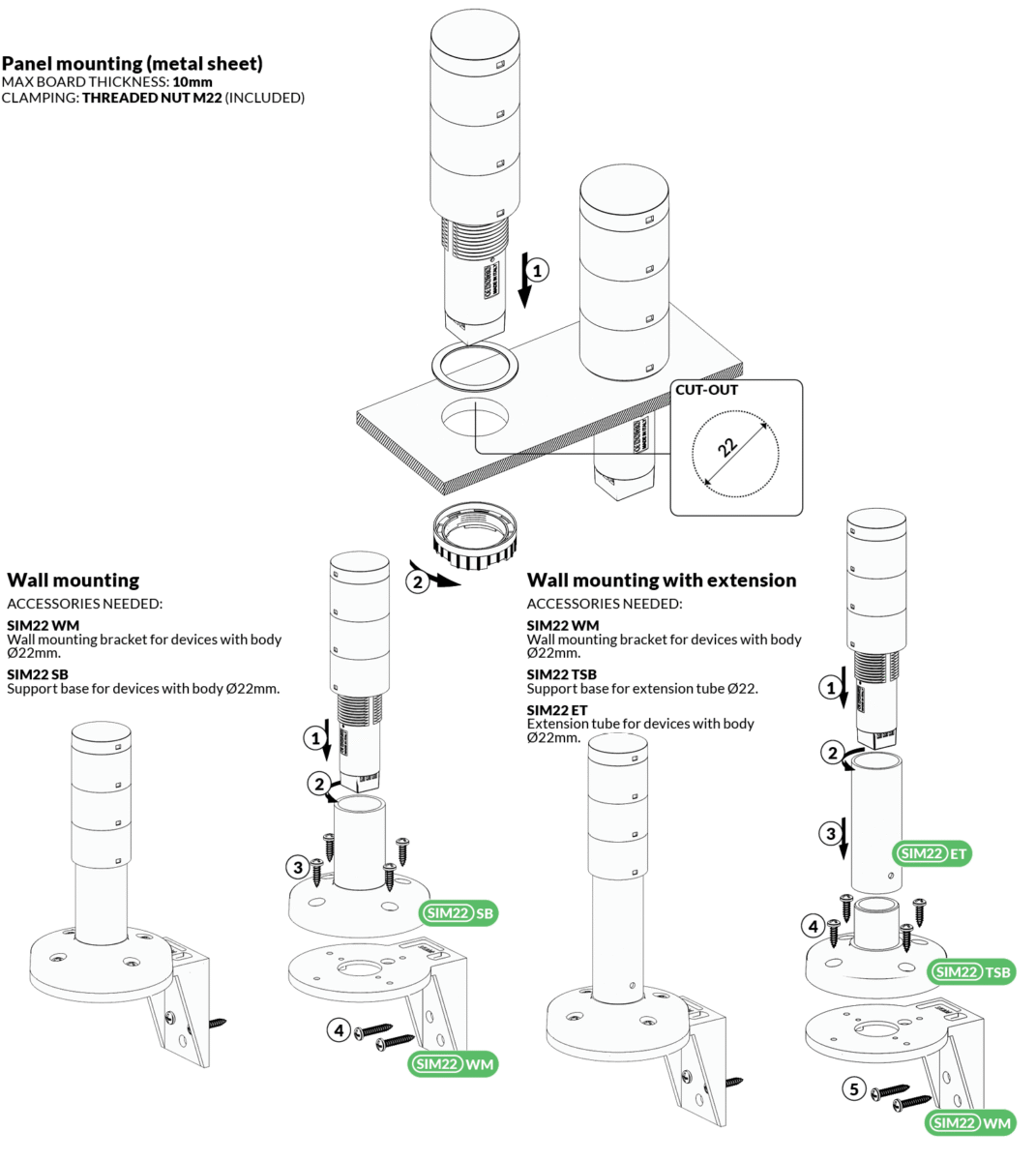

  Cut-out: 22mm
  Head: 30mm

• Colors

  Colors

  •
  •
  •
  •
  •
  •

  MODULES

  •
    2 Color Modules
  •
    1 Color Module + Acoustic Module
  •
    3 Color Modules
  •
    2 Color Modules + Acoustic Module
  •
    4 Color Modules
  •
    3 Color Modules + Acoustic Module
  •
    5 Color Modules
  •
    4 Color Modules + Acoustic Module

• Power supply voltage

  •
    24V AC/DC
  •
    48V AC/DC

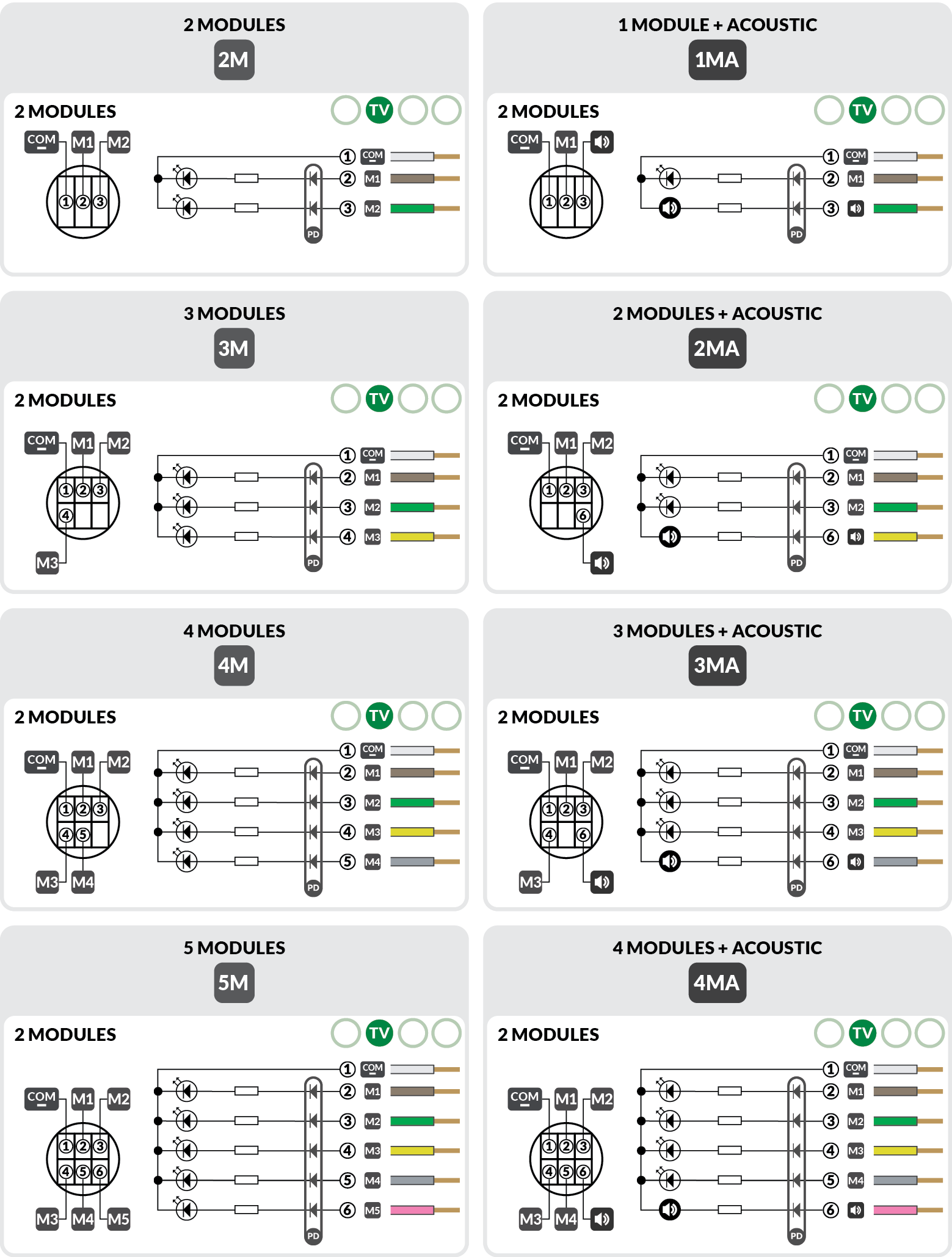

• Connection type

  •
    Screw connection with tension sleeve

• Extra features

  •
    Tropicalization
  •
    Flying leads
  •
    Blinking light

• Specific features

  •

    LED Cluster Light

    The presence of 8 LEDs inside each module spreads an intense and bright colored light evenly diffused.

  •

    Built-in Rectifier Bridge

    To operate both in alternating (Vac) and direct current (Vdc).

  •

    Backfeed Protection

    Built-in protection diodes protect the circuit from reverse voltage and current.

  •

    RGB LED Technology

• Degree of protection

  •
    IP54

• Service life

  •
    >100.000h at 25°C

• Ambient air temperature

  •

    -40°C
    +70°C

    For storage
    -40... +70°C

  •

    -20°C
    +70°C

    For operation
    -20... +70°C

• Materials

  •
    Polycarbonate (PC)

• PCB

  •
    6 layers PCB

• Bulb base

  • Integral LED

• Device presentation

  • Monolithic product

• Vibration resistance

  • 5gn (f = 2...500 Hz)

    conforming to IEC 60068-2-6

• Electromagnetic compatibility

  • Disturbing field emission class B

    conforming to EN 55011

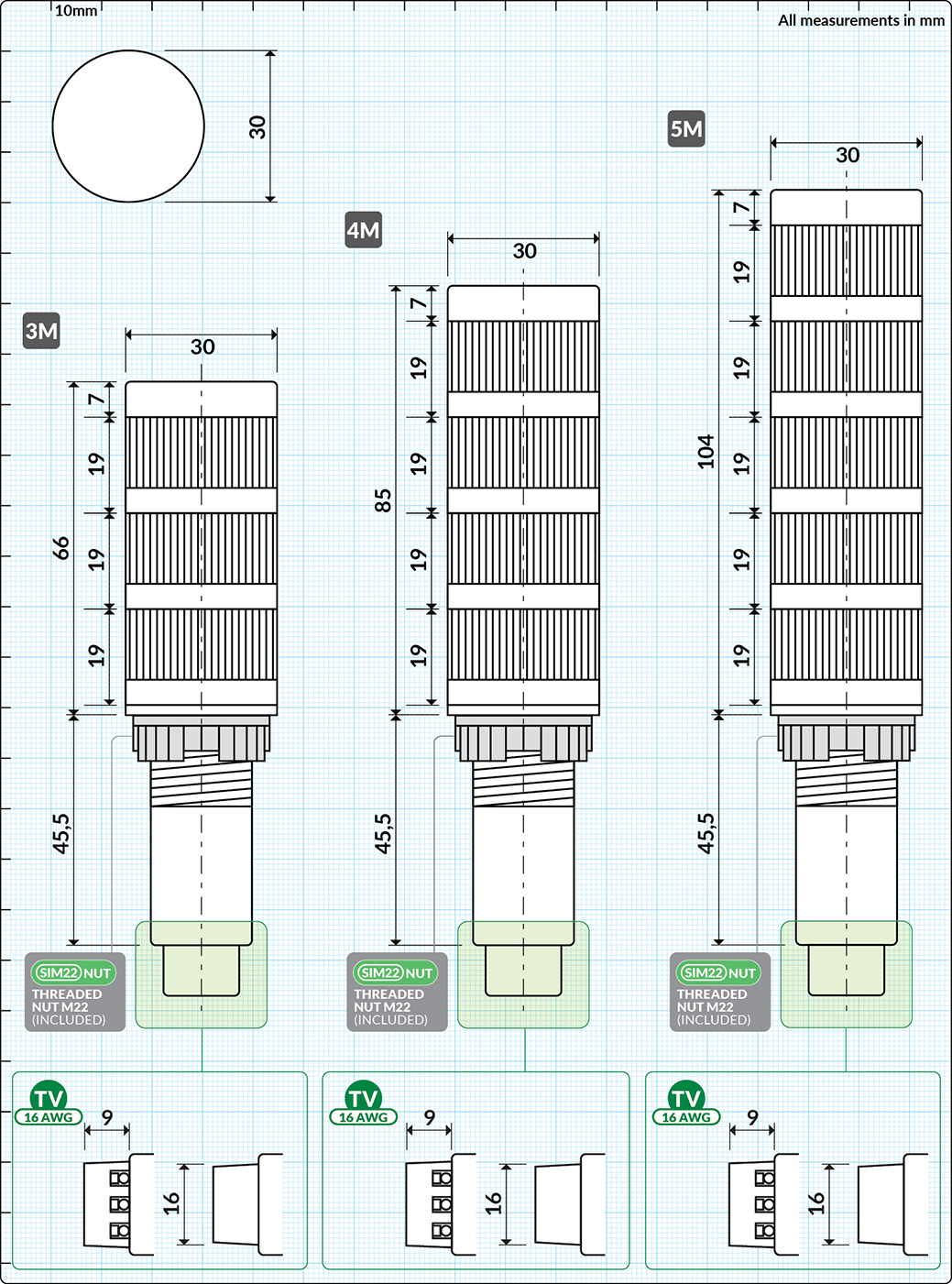

• Dimensions



• • REACh free of SVHC

  • Mercury free

  • Toxic heavy metal free

• Compliance

  Directive 2006/95/EC Low Voltage
  Directive 2004/108/EC Electromagnetic Compatibility
  Directive 2011/65/EC RhOS
  Directive 2006/42/EC Machinery

  Conformity to standards

  EN 60947.5.1 / EN 60073 / EN 60529 / EN 60068-2-6 / EN 60204.1 / EN ISO 7731 / EN 981 / IEC 536

  Warranty

  Warranty period is eighteen (18) months and starts from the goods delivery date.

  Customs Code

  8531 807000
