Technical Features

  • Series

    VI
    VI regular
  • Size

    REGULAR
    Cut-out: 22mm
    Head: 30mm

  • LEDs

    IP65
    • 3PH
      3PH
    Colors
  • Power supply voltage

    • 230V AC
      230V AC
    • 400V AC
      400V AC
  • Connection type

    • ST
      Screw connection with tension sleeve on pluggable terminal blocks
    • SP
      Push-in spring connection on pluggable terminal blocks
  • Specific features

    • 3-Phase Voltage Presence Indicator
      3-Phase Voltage Presence Indicator

      One LED for each phase. When a LED is OFF, the corresponding phase is interrupted.

    • Fresnel Lens
      Fresnel Lens

      Each LED is equipped with a Fresnel lens.

    • Backfeed Protection
      Backfeed Protection

      Each phase is equipped with a 2000V protection diode.

    • Capacitor
      Capacitor

      Each phase is equipped with a 1000V/50nf capacitor.

  • Degree of protection

    • <b>IP65</b>
      IP65
  • Service life

    • <b>>100.000h at 25°C</b>
      >100.000h at 25°C
  • Ambient air temperature

    • Storage Temperature

      -40°C
      +70°C

      For storage
      -40... +70°C

    • Operation Temperature

      -20°C
      +70°C

      For operation
      -20... +70°C

  • Materials

    • <b>Polycarbonate (PC)</b>
      Polycarbonate (PC)
    • <b>Mylar film</b>
      Mylar film
  • PCB

    • <b>2 PCBs, 4 layers each</b>
      2 PCBs, 4 layers each
  • Bulb base

    • Integral LED

  • Device presentation

    • Monolithic product

  • Vibration resistance

    • 5gn (f = 2...500 Hz)

      conforming to IEC 60068-2-6

  • Electromagnetic compatibility

    • Disturbing field emission class B

      conforming to EN 55011

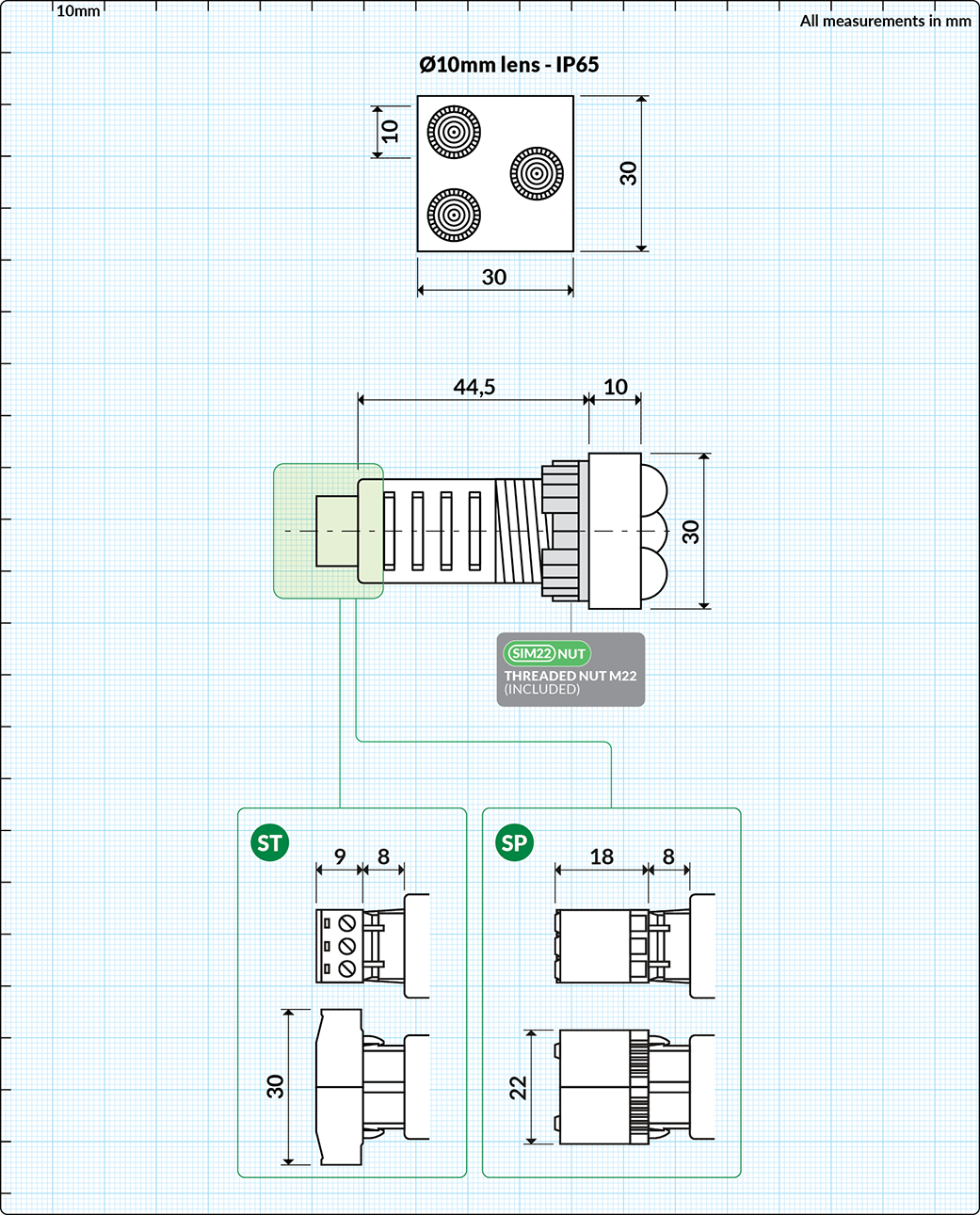

  • Dimensions

    Dimensions
    • REACh free of SVHC

    • Mercury free

    • Toxic heavy metal free

  • Compliance

    Directive 2006/95/EC Low Voltage
    Directive 2004/108/EC Electromagnetic Compatibility
    Directive 2011/65/EC RhOS
    Directive 2006/42/EC Machinery

    Conformity to standards

    EN 60947.5.1 / EN 60073 / EN 60529 / EN 60068-2-6 / EN 60204.1 / EN ISO 7731 / EN 981 / IEC 536

    Warranty

    Warranty period is eighteen (18) months and starts from the goods delivery date.

    Customs Code

    8531 807000
