Technical Features

• Series

  VL



• Size

  8
  Cut-out: 8mm

• Head shape

  •
    Convex, reflector
  •
    Concave, reflector

• Colors

  MONOCOLOR

  Colored lens/Colored LED

  •
    Red lens, Red LED
  •
    Green lens, Green LED
  •
    Yellow lens, Yellow LED
  •
    Amber lens, Amber LED
  •
    Blue lens, Blue LED
  •
    White lens, White LED

  BICOLOR

  White lens/Colored LEDs

  •
    White lens, Red/Green LEDs ¹

• Power supply voltage

  •
    6V AC/DC ²
  •
    12V AC/DC ³
  •
    24V AC/DC
  •
    48V AC/DC
  •
    130V AC/DC ⁴
  •
    230V AC/DC ⁵

• Connection type

  •
    Faston terminals

• Extra features

  •
    Tropicalization
  •
    Flying leads

• Specific features

  •

    Smart PCB

    To operate both in alternating (Vac) and direct current (Vdc).

  •

    Low Voltage Glow Protection

    A Zener diode properly calibrates the minimum voltage required to switch on the LED Indicator.

  •

    RGB LED Technology

• Degree of protection

  •
    IP40

• Service life

  •
    >100.000h at 25°C

• Materials

  •
    Polycarbonate (PC)

• PCB

  •
    4 layers PCB

• Bulb base

  • Integral LED

• Device presentation

  • Monolithic product

• Vibration resistance

  • 5gn (f = 2...500 Hz)

    conforming to IEC 60068-2-6

• Electromagnetic compatibility

  • Disturbing field emission class B

    conforming to EN 55011

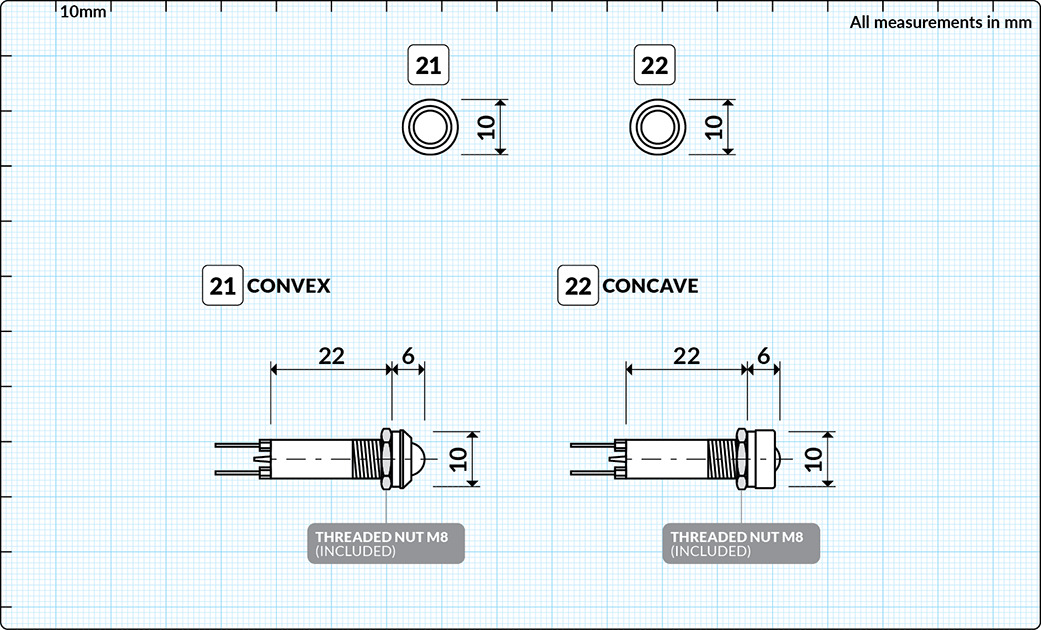

• Dimensions



• • REACh free of SVHC

  • Mercury free

  • Toxic heavy metal free

• Compliance

  Directive 2006/95/EC Low Voltage
  Directive 2004/108/EC Electromagnetic Compatibility
  Directive 2011/65/EC RhOS
  Directive 2006/42/EC Machinery

  Conformity to standards

  EN 60947.5.1 / EN 60073 / EN 60529 / EN 60068-2-6 / EN 60204.1 / EN ISO 7731 / EN 981 / IEC 536

  Warranty

  Warranty period is eighteen (18) months and starts from the goods delivery date.

  Customs Code

  8531 807000

• • ¹ is not compatible with
  • ² is not compatible with
  • ³ is not compatible with
  • ⁴ is not compatible with
  • ⁵ is not compatible with
